Diplexer Ku-band for Earth Station Antennas

Condition:New OEM
Model:
Manufacturer:

Diplexer Ku-band for Earth Station Antennas

Skybrokers provides quality RF components from reputed manufacturers. We have integrated Wave-Guide system and Diplexer/OMT’s into refurbished Earth Station antennas. Our professional RF testers successfully tested the complete antenna system prior to commencing operation.

We are integrating waveguide components and assemblies such as filters, diplexers, power combiners couplers and adaptors from A1 Microwave and Norsat.

A1 Microwave products are ITAR free and designed in-house using sophisticated simulation software and CNC machining, turning, brazing, hard & soft soldering and bending facilities.


A1 Microwave Ku-band Diplexer, PB1308WD

Designed to connect a transmitter and a receiver to a common antenna port with minimum insertion loss and maximum isolation between the two channels.

Passbands;                                                             10.7 to 12.75 GHz and 13.75 to 14.5 GHz
Passband insertion loss;                                     0.2 dB typical
Passband return loss;                                          20 dB min
Rejection of transmitter in Rx;                         110 dB min
Rejection of receiver in Tx;                                90 dB min
Overall length;                                                      150 mm
Port separation;                                                    80 mm (alternative separations are available)
Flanges;                                                                  UBR 120 (alternative flanges and coax interfaces available)



Norsat Ku-band Diplexer, WGD-001

Designed to connect a transmitter and a receiver to a common antenna port with minimum insertion loss and maximum isolation between the two channels.

Passbands;                                                             10.95 to 12.75 GHz and 13.75 to 14.5 GHz
Rx Passband insertion loss;                               0.35 dB max
Tx Passband insertion loss;                               0.25 dB max
Passband return loss (all ports);                      1.25 : 1 max
Rejection of transmitter in Rx;                         35 dB min
Rejection of receiver in Tx;                                70 dB min
Flanges;                                                                  WR75

Diplexer Ku-band for Earth Station Antennas

A1 Microwave PB1308WD diplexer

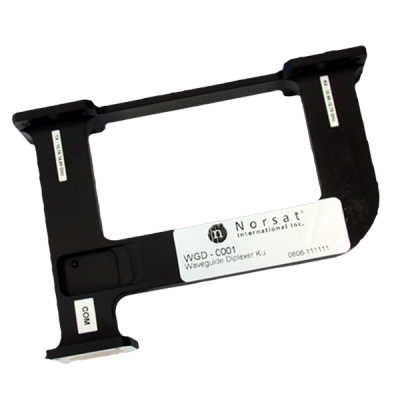

Norsat Ku-band Diplexer WGD-001
