Andrew 5.6m Ku-band Earth Station antenna 4-port RxTx with Motorized Tripod Mount

Condition:Used and refurbished
Model:ES56-1
Manufacturer:Andrew Corp.

We're sorry but this product is sold

Andrew 5.6m Ku-band Earth Station antenna, 4-port RxTx, Motorized Tripod Mount with AZ/EL jackscrews

The Andrew 5.6m Earth Station Antenna is in use around the world in high-density data, voice, communications networks and broadcast applications. The antenna features uniquely formed dual reflector Gregorian system coupled with close-tolerance manufacturing techniques. This combination provides extremely accurate surface contour, exceptionally high gain, superior efficiency, and closely controlled pattern characteristics.

In addition, the 5.6m Ku-band antenna features a tripod ground mount fabricated from hot-dipped galvanized steel to ensure extended product life. This Andrew Earth Station Antenna 5.6m, in Ku-band, Rx/Tx, 4-port Linear feed, Dual reflector Gregorian has a Motorized Tripod Mount and has High Gain and is easy to assemble with no field alignment. Antenna has 12-piece Precision formed aluminum reflector segments, WR75 Waveguide Interface flange and a Hub enclosure.

This Andrew 5.6m antenna conforms to the highest mechanical design standards and is capable of surviving winds up to 200 km/h (120mph). The wind loads are mentioned in the datasheet. We supply foundation kits, powerbox and a handheld controller to move antenna thru motorization.

Andrew’s wide selection of type-approved antennas speeds system commissioning. The Andrew 5.6m is a Type Approved Earth Station Antenna and can be deployed in the field with minimal testing of G/T to become fully certified as an INTELSAT standard E-1 & E-2, station.

The 52inch (1,320mm) diameter by 46inch (1,170mm) equipment enclosure (Antenna Hub or drum) with doors allows hub mounting of HPA’s and LNA systems. Andrew Earth Station Antenna’s provide maximum durability with minimal maintenance. The hot-dipped galvanized steel ground mount assembly ensures extended product life. Galvanized and stainless-steel hardware maximize corrosion resistance.


Features

  • High Gain, Excellent Pattern Characteristics
  • Advanced Gregorian Optics
  • Self-Aligning Main Reflector, No Field Alignment
  • Deep Equipment Enclosure


Type Approvals and Compliances

  • INTELSAT E-1, E-2, G, Z
  • EUTELSAT
  • ITU-R, S.580-4 & S.465-5
  • S. FCC regulation 25.209 at Ku-Band
  • Approved for use in the territory of Russia by the Ministry of Communications of the Russian Federation (Reference: Homologation Certificate No OC/I-A -o-1)

Skybrokers de-installs 5.6m Antenna systems frequently. Please contact us for up-to-date information about availability and with regards to refurbishment time.

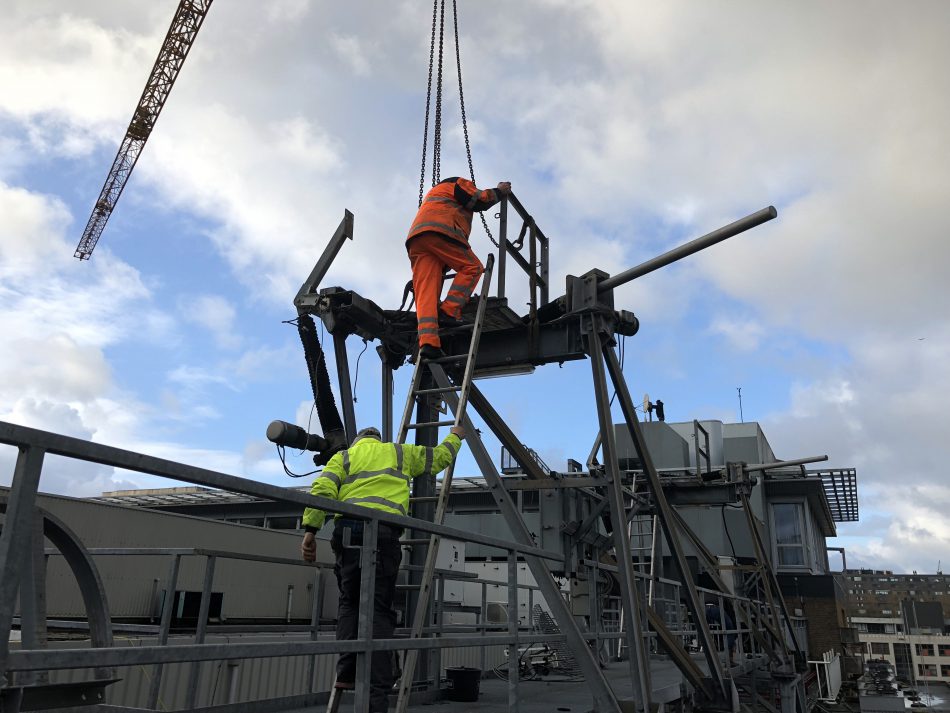

Do you want to see how we dismantled this Andrew antenna? The de-installation was part of a project where we dismantled and removed 30+ satellite antennas from a 4-story building in Amsterdam, The Netherlands. Project was completed in January 2018. Please watch the video on YouTube: Skybrokers de-installs 30+ Satellite Antennas in Amsterdam, The Netherlands.

Andrew 5.6m Ku-band Earth Station antenna 4-port RxTx with Motorized Tripod Mount

Satellite Antennas de-installed in Amsterdam, The Netherlands
Satellite Antennas de-installed in Amsterdam, The Netherlands
Satellite Antennas de-installed in Amsterdam, The Netherlands
Satellite Antennas de-installed in Amsterdam, The Netherlands
Satellite Antennas de-installed in Amsterdam, The Netherlands

Andrew 5.6m Ku-band Earth Station antenna 4-port RxTx with Motorized Tripod Mount
