Andrew 7.3m C-band Earth Station antenna 4-port RxTx with Motorized Tripod Mount

Condition:Used and refurbished
Model:ES73C-1
Manufacturer:Andrew Corp.

We're sorry but this product is sold

Andrew 7.3m Satellite antenna, C-band, 4-port RxTx with Motorized Tripod Mount

The Andrew 7.3m Earth Station Antenna is in use around the world in high-density data, voice, communications networks and broadcast applications. The antenna features uniquely formed dual reflector Gregorian system coupled with close-tolerance manufacturing techniques. This combination provides extremely accurate surface contour, exceptionally high gain, superior efficiency, and closely controlled pattern characteristics. The 48inch (1,220mm) diameter by 46inch (1,170mm) equipment enclosure (Antenna Hub or drum) with doors allows hub mounting of HPA’s and LNA systems.

Andrew’s wide selection of type-approved antennas speeds system commissioning. The Andrew 7.3m is a Type Approved Earth Station Antenna and can be deployed in the field with minimal testing of G/T to become fully certified as an INTELSAT standard D-1, F-1, F-2, F-3, G station.

Andrew Earth Station Antenna’s provide maximum durability with minimal maintenance. The hot-dipped galvanized steel ground Tripod mount assembly ensures extended product life. Galvanized and stainless-steel hardware maximize corrosion resistance.

Features

  • High Gain, Excellent Pattern Characteristics
  • Advanced Gregorian Optics
  • Self-Aligning Main Reflector, No Field Alignment
  • Field Switchable RxTx Combiner, 2-port C-band Circular
  • Rugged Aluminum and Steal, 125mph (200km/h) Wind Survival



Type Approvals and Compliances

  • INTELSAT D-1, F-1, F-2, F-3 G (IA032A00 & IA032B00)
  • ITU-R, S.580-4 & S.465-5
  • S. FCC regulation 25.209 at C-Band
  • Approved for use in the territory of Russia by the Ministry of Communications of the Russian Federation (Reference: Homologation Certificate No OC/I-A -o-1)

The Antenna System will be completely reconditioned and refinished to look and perform like new. We complete the antenna with new motors/reducers, reflector hardware kits checked-out and completed and a documentation package and foundation plans are provided. System is guaranteed to OEM specifications when properly installed by one of our professional installation teams.

The Andrew 7.3m Satellite Antenna System can be packed and stowed in a 40ft Sea-Container or prepared for road transportation.

This antenna was dismantled at a Teleport in New York City as part of a de-installation project. Unfortunately, this antenna is not available anymore. We are happy to offer you alternatives.

Andrew 7.3m C-band Earth Station antenna 4-port RxTx with Motorized Tripod Mount

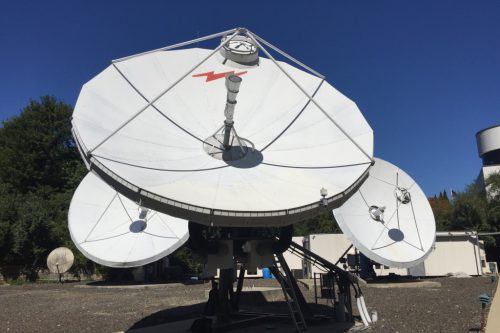

Andrew 7.3m C-band Antenna
Andrew 7.3m C-band antenna side view
Andrew 7.3m C-band Antenna
Andrew 7.3m C-band Antenna
Andrew 7.3m C-band Antenna
Andrew 7.3m C-band Antenna

Andrew 7.3m C-band Earth Station antenna 4-port RxTx with Motorized Tripod Mount
