ETi NETCOM Low Pressure Dehydrator model EDH-5

The ETi NETCOM Low Pressure Dehydrator model EDH-5 meets the need for performance from your remote or mobile antenna transmission line, no matter where or how small it is.

Well suited for Ku and Ka band applications, the EDH–5 is engineered as a go-anywhere, low cost, manually regenerated dehydrator for pressurizing small volume waveguide and coax. It has a small footprint, an improved pressure sensor and efficient operations.

The discharge pressure is 0.5psig (34.5mbar) with a maximum flow rate of 4.77 scfh (2.25lpm) with a typical dew point as low as -40°F/C. A microcontroller regulates pressure and manages all dehydrator functions.

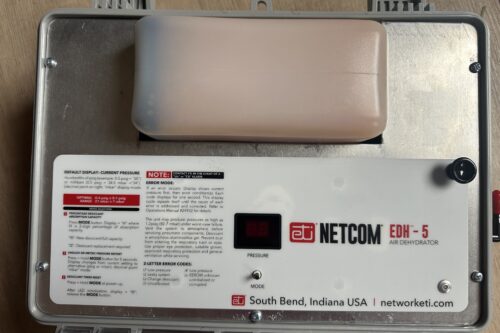

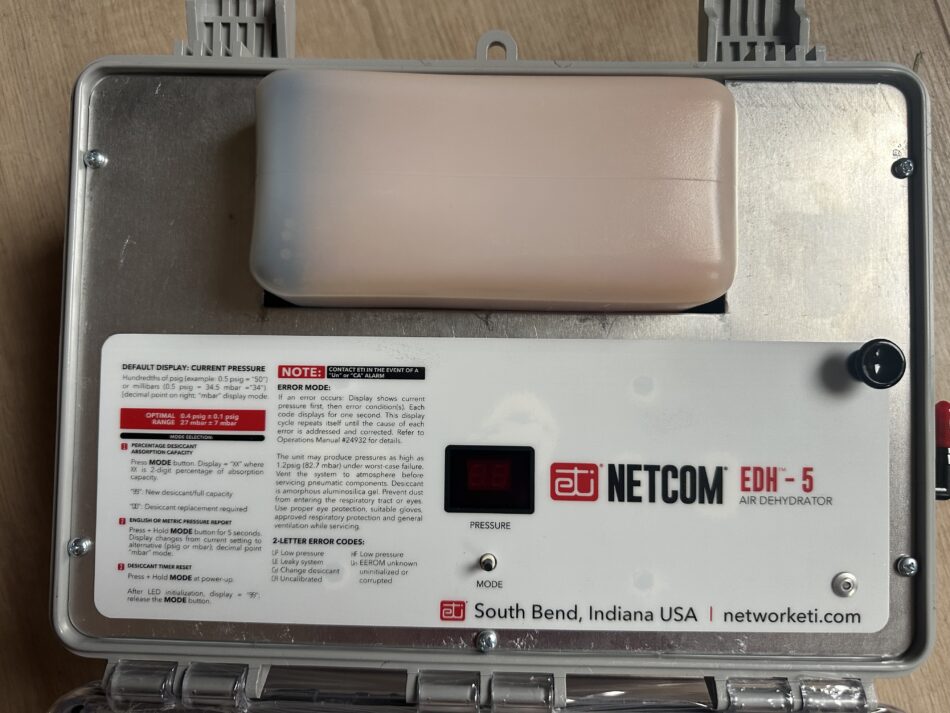

The EDH–5 indicates pressure and status on a bright 2-digit red LED display. Solid state control of all functions ensures reliability.

The desiccant container is conveniently replaceable from the front, without removing the dehydrator from its waveguide. Should repairs ever be required, modular subsystems eliminate the need for special tools and test equipment. The dehydrator limits continuous air pump operation to four hours in the event of a severe leak.

Selectable English or SI calibration ideally suited the EDH–5 and auto-select voltages from 100 to 240 VAC for global applications. The -40°F to 130°F (-40°C to 55°C) operating temperature range promotes location flexibility.

For complete information describing its application, installation and features, please check datasheet in the download section.

FEATURES & BENEFITS

• Keeps waveguide and coax dry to improve earth/base station reliability
• Indoor or outdoor operation
• Simple one-button operation; 2 digit, 7 segment
• display
• Quiet operation: up to 36 dB
• International capability:
  – Selectable English or SI calibration
  – 100 – 240 VAC, 50/60 Hz operation

• High energy efficiency
• Simple installation & maintenance
