Andrew 4.6m Ku-band Earth Station Antenna 4-port RxTx with Motorized Pedestal Mount

Andrew 4.6m Ku-band Satellite Antenna 4-port RxTx with Motorized Pedestal Mount (USED)

This Andrew Earth Station Antenna, 4.6m Ku-band, Rx/Tx, is configured with a 4-port LP feed and has a Dual reflector and includes a motorized Pedestal mount and AZ/EL jack screws, The prime focus antenna is Eutelsat and Intelsat approved.

This Antenna is in use around the world in high-density data, voice, communications networks and broadcast applications. The antenna features uniquely formed dual reflector Gregorian system coupled with close-tolerance manufacturing techniques. This combination provides extremely accurate surface contour, exceptionally high gain, superior efficiency, and closely controlled pattern characteristics.

Andrew’s wide selection of type-approved antennas speeds system commissioning. The Andrew 4.6m is a Type Approved Earth Station Antenna and can be deployed in the field with minimal testing of G/T to become fully certified as an INTELSAT standard E-2, or F-1 station.

This Andrew 4.6m Satellite Antenna has a 48inch (1,219mm) diameter by 24inch (610mm) equipment enclosure (Antenna Hub or drum) with doors allows hub mounting of HPA’s and LNA systems. Andrew Earth Station Antenna’s provide maximum durability with minimal maintenance. The hot-dipped galvanized steel ground mount assembly ensures extended product life. Galvanized and stainless-steel hardware maximize corrosion resistance.

Features

• High Gain, Excellent Pattern Characteristics
• Gregorian Optics
• Self-Aligning Main Reflector, No Field Alignment
• Field Changeable Feed System, C-Band, circular to linear

Type Approvals and Compliances

• INTELSAT (IA015A00) or (IA015B00), F-1, G
• INTELSAT (IA021A00) or (IA021B00), E2, G
• EUTELSAT
• ITU-R, S.580-4 and S.465-5
• S. FCC regulation 25.209 at Ku-Band
• ASIASAT
• APSTAR
• Approved for use in the territory of Russia by the Ministry of Communications of the Russian Federation (Reference: Homologation Certificate No OC/I-A -f-1)

System will be completely reconditioned and refinished to look and perform like new. We complete the antenna with new motors/reducers, reflector hardware kits are checked and completed and a documentation package and foundation plans are provided. System is guaranteed to OEM specifications when properly installed by one of our professional installation teams.

We have various antenna systems, motorized as well as fixed coming in soon!

Andrew 4.6m Ku-band Earth Station Antenna 4-port RxTx with Motorized Pedestal Mount

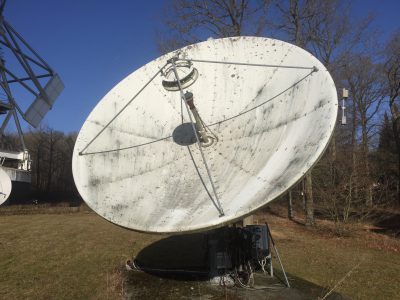

Andrew 4.6m Ku Mot with ASC3000 (front view)

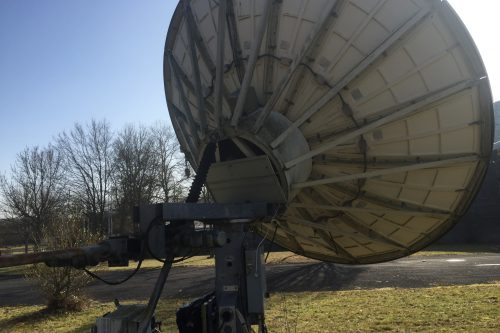

Andrew 4.6m Ku Mot with ASC3000 (rear view2)

Andrew 4.6m Ku Mot with ASC3000 (side view2)

Andrew 4.6m Ku Mot with ASC3000 (ACU inside)

Andrew 4.6m Ku Mot with ASC3000 (motor)

Andrew 4.6m Ku Mot with ASC3000 (mount detail2)
