Andrew 4.6m C-band Earth Station Antenna 2-port RxTx with Fixed Pedestal Mount

Condition:Used and refurbished
Model:ES46C
Manufacturer:Andrew Corp.

Andrew 4.6m C-band Satellite Antenna 2-port RxTx with Fixed Pedestal Mount (USED)

This Andrew Earth Station Antenna, 4.6m C-band, Rx/Tx, is configured with a 2-port CP feed and has a Dual reflector and includes a fixed Pedestal mount, The prime focus antenna is Eutelsat and Intelsat approved.

This Antenna is in use around the world in high-density data, voice, communications networks and broadcast applications. The antenna features uniquely formed dual reflector Gregorian system coupled with close-tolerance manufacturing techniques. This combination provides extremely accurate surface contour, exceptionally high gain, superior efficiency, and closely controlled pattern characteristics.

Andrew’s wide selection of type-approved antennas speeds system commissioning. The Andrew 4.6m is a Type Approved Earth Station Antenna and can be deployed in the field with minimal testing of G/T to become fully certified as an INTELSAT standard E-2, or F-1 station.

Andrew 4.6m C-band Satellite antenna has a 48inch (1,219mm) diameter by 24inch (610mm) equipment enclosure (Antenna Hub or drum) with doors allows hub mounting of HPA’s and LNA systems. Andrew Earth Station Antenna’s provide maximum durability with minimal maintenance. The hot-dipped galvanized steel ground mount assembly ensures extended product life. Galvanized and stainless-steel hardware maximize corrosion resistance.


Features

  • High Gain, Excellent Pattern Characteristics
  • Gregorian Optics
  • Self-Aligning Main Reflector, No Field Alignment
  • Field Changeable Feed System, C-Band, circular to linear


Type Approvals and Compliances

  • INTELSAT (IA015A00) or (IA015B00), F-1, G
  • INTELSAT (IA021A00) or (IA021B00), E2, G
  • EUTELSAT
  • ITU-R, S.580-4 and S.465-5
  • S. FCC regulation 25.209 at Ku-Band
  • ASIASAT
  • APSTAR
  • Approved for use in the territory of Russia by the Ministry of Communications of the Russian Federation (Reference: Homologation Certificate No OC/I-A -f-1)

System will be reconditioned and refinished to look and perform like new. Reflector hardware kits are checked and completed and a documentation package and foundation plans are provided. System is guaranteed to OEM specifications when properly installed by one of our professional installation teams.

Andrew 4.6m C-band Earth Station Antenna 2-port RxTx with Fixed Pedestal Mount

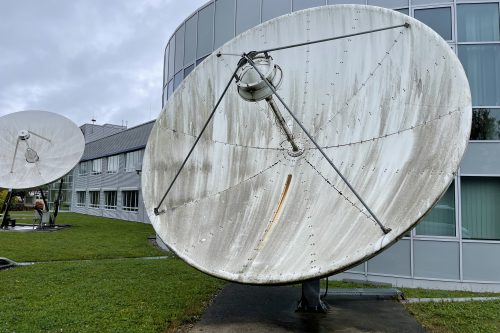

Andrew 4.6m 2-port LP C-band front1
Andrew 4.6m 2-port LP C-band front2
Andrew 4.6m 2-port LP C-band rear
Andrew 4.6m 2-port LP C-band rear2

Andrew 4.6m C-band Earth Station Antenna 2-port RxTx with Fixed Pedestal Mount
