Vertex 9.0m C-band Earth Station Antenna with motorized Pedestal
|Condition:||Used and refurbished|
Perhaps you're interested in this alternative product:
Vertex 9.0m Satellite Antenna 4-port C-band with motorized Pedestal Mount

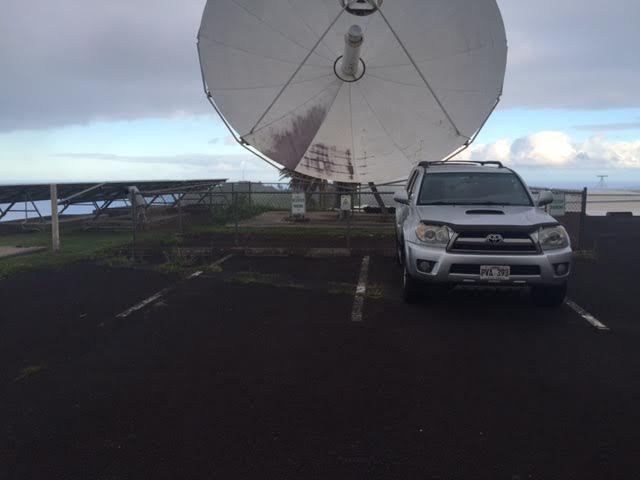

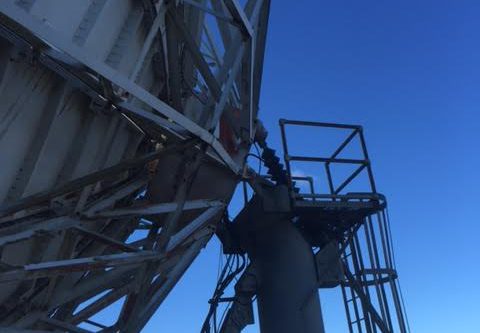

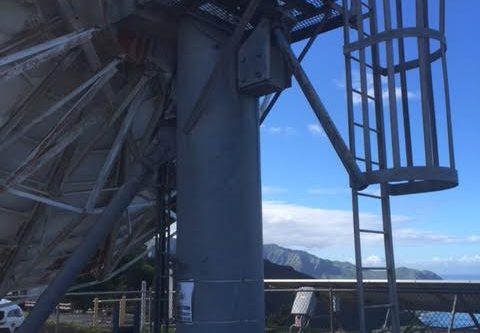

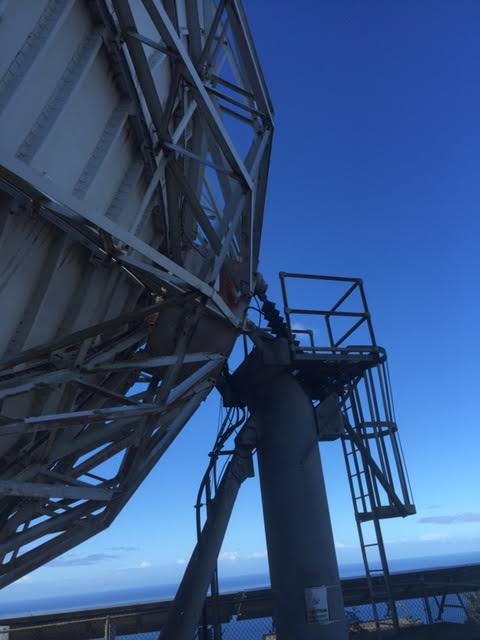

The Vertex 9.0m (VertexRSI) 9.0m KPC Cassegrain Earth Station Antenna 9.0m is configured in C-band, Rx/Tx and includes a Motorized Pedestal Mount with AZ/EL jackscrews, a Hub enclosure 178cm (70inch), 91cm (36inch) depth and 16-piece precision-formed aluminum panels with heat-diffusing white paint.
Model 9.0 KPC (C-band) and Model 9.0 KPK (Ku-band) antennas incorporate stretch formed doubly contoured panels with matched radials and hub assemblies for ease of field assembly. The reflectors and Azimuth/Elevation kingpost pedestals provide the stiffness and pointing accuracy required for C-band and Ku-band operation. These antennas are designed for full orbital arc coverage and are readily adaptable to ground or rooftop installations.
The antennas meet FCC Pegulation 25.209, Eutelsat requirements for antenna pattern and polarization discrimination, and INTELSAT requirements as specified in associated lESS documents.
- Two port, three port, and four port Tx/Rx linear and circular polarized feeds
- New Reflector and feed deicing, full reflector systems with manual or automatic controls
- Motorization Drive Systems and Tracking packages (USED as well as NEW)
- Turnkey installations or installation assistance
System will be completely reconditioned and refinished to look and perform like new. We complete the antenna with new motors and gearboxes, new limits, reflector hardware kits are checked out and a documentation package and foundation plans are provided. System is guaranteed to meet OEM specs when properly installed by our professional installation team. We have installed various 9.0m antennas in Germany, Greenland, UK and Cyprus.
This Vertex 9.0m Satellite Antenna will be dismantled in Q4 2023. Please ask us for details.
