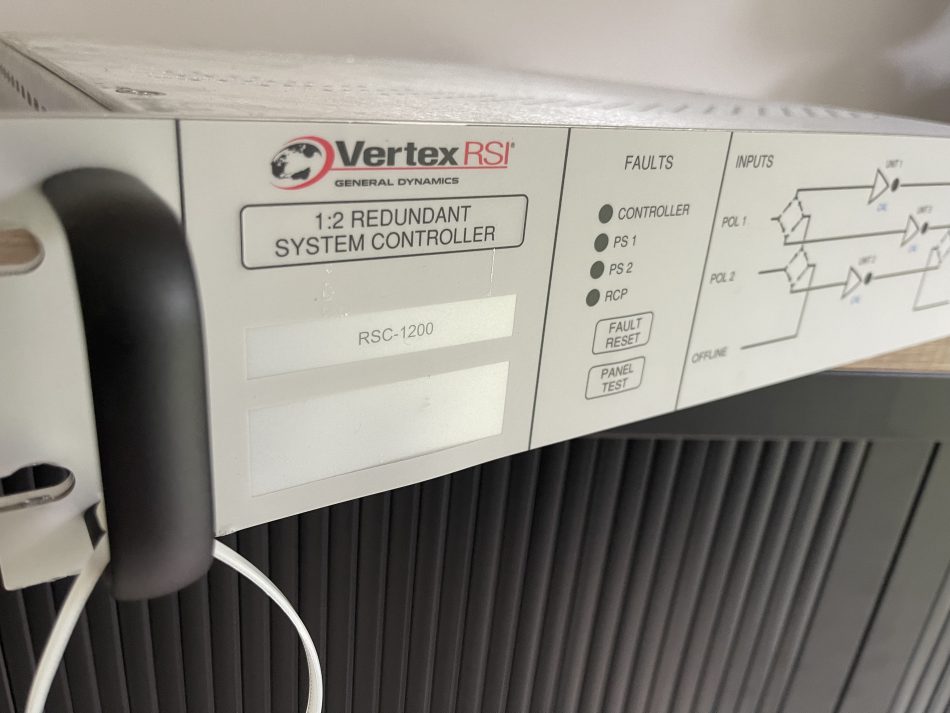

VertexRSI RSC-1200 1:2 Redundant System Controller

The VertexRSI RSC-1200 1:2 Redundant System Controller can directly power most LNA or LNB units and monitor the output voltages and currents to detect faults. The controller can also monitor external alarm input signals, such as from a SSPA or BUC, or monitor a combination of output currents and external alarm inputs. Upon detecting a unit failure, the controller can automatically drive a waveguide switch to activate the spare unit.

Redundant systems increase system availability by including spares for critical units (e.g., LNAs, LNBs, BUCs or SSPAs) in the signal path. In the case of a detected unit failure, the redundant system automatically switches to the spare. A 1:2 redundant system supports two active units and one spare unit.

Features

• Standard 19″ rack panel, 31⁄2″ high
• Dual, redundant power supplies
• Worldwide universal AC input capability
• Manual or automatic operation
• Mimic front panel graphically depicts switch positions and unit status
• Monitors unit currents, external alarms, or a combination of both to detect unit failure
• Automatically switches RF path to standby unit when unit failure occurs
• Jumperless RS-232/-422/-485 and parallel I/O M&C interfaces
• Audible alarm
• Jumperless software configuration of all options
• Remote Control Panel option duplicates front panel at remote site

Skybrokers has installed various redundant controllers with their used and refurbished Earth Station antennas. We have one unit available that can be released quickly. We provide 90-day warranty and can ship worldwide EXW The Netherlands.
